Lexia-3 PP2000 Software Diagbox V7.24

Diagbox V7.24 Software for Lexia-3 PP2000 is Dealer diagnostic program for car PEUGEOT & CITROEN. Works with the adapters XS Evolution Lexia3.

Diagbox V7.24 Software for Lexia-3 PP2000 Details:

Year / Date: 2013

Version: 7.24

System Requirements: Windows/ XP,WIN7, More than 4G of memory.

Language: Multi-language

Article form:http://lexia-3.blogspot.com/2014/02/lexia-3-pp2000-software-diagbox-v724.html

Lexia 3 PP2000 Citroen Peugeot Diagnsotic Interface

Lexia 3 PP2000 is popular auto diagnostic tool for Citroen and Peugeot.The Citroen Software is Lexia 3,the newest version is V48.Peugeot software is PP2000,the newest version is V25.It can be updated by CD.Lexia-3 PP2000 has powerful function which can support read identification, read fault codes, clear fault codes,auto-scan etc.

LEXIA-3 PP2000 Support Multi-Language:

English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech.

LEXIA-3 PP2000 Support Vehicles:

1.Lexia 3 is compatible with Citroen cars including: C1,C2,C3,C4,C6,C8,C-CROSSER,NEMO,BERLINGO,JUMPY,JUMPER,AX,SAXO,BX and so on.

2.PP2000 is compatible with most Peugeot cars from 1995.New version support Peugeot 307.

3.Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

LEXIA-3 PP2000 Function:

1.Read Identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read Fault Codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").
Program supports report printing or copy to clipboard.

3. Clear Fault Codes
this function clears all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator Test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

LEXIA-3 PP2000 Hardware and Software Requirements:

Software requires at least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with the latest service pack installed.


Go To Check More Details: Lexia-3 V48 PP2000 V25

English Version:

Francaise Version:

How to disable TPMS with Lexia 3 PP2000 Diagbox

Thanks to Vadimus who has developed the function of disabling TPMS with Lexia 3 diagnostic system in Mitsubishi forum. The method was first tested on his Mitsubishi Outlander.

Lexia 3 diagnostic system is designed for Peugeot and Citroen vehicles. Why is able to diagnose Mitsubishi vehicles? Because both Peugeot and Citroen had or still have models which are rebranded versions of Mitsubishi Outlander/RVR so they made their tool to support those Mitsubishi clones.

Tool needs:
Lexia 3 V48 PP2000 V25 Diagbox diagnostic interface
Operating system:
A laptop running Windows XP Professional operating system with any anti-virus software or existing program OFF (This is very important, otherwise, the software program may be blocked)

Problem:
Disable TPMS indicator light on Mitsubishi Outlander.

 1) Locate your vehicle diagnostic socket and plug the Lexia 3 interface into the OBD port.

  2) Install the Lexia 3 software program.
Here is the Lexia 3 software program installation manual for you:
LEXIA3 CITROEN/PEUGEOT DIAGNOSTIC TOOL INSTALL INSTRUCTION
   Select C-crosser - Lexia - Diagnosis - Test by function.
Choose category according to your selection, here take SUV as an example and come to the ECU list.
You will be shown the ETACS interface also called "BSI".
Select BSI - Configuration - Manual configuration
Next, there will be two options - Vehicle configuration and Customer options. (PP2000 needed)
Select Customer options, select “Repair”

3) Come to the “ETACS-SUV? Programming by default” menu. Select “Under inflection detection”. TPMS is included the option. The current status is Present (ON)

4) The system now is disabling under inflation status.

5) The system will automatically disable inflaction settings. The status now turns to “ABSENT” (OFF)


6) The TPMS indicator light is OFF. Drive it around a few miles to test it.

Lexia 3 PP2000 Diagbox Customize Achieves on Win7/Win8

One of the Mitsubishi evoxforums forum members has realized some cool Customize setting with Lexia3 PP2000 Diagbox diagnostic interface on win 8 operating system.

Tools needs:
Lexia 3 Diagbox software
A virtual machine running Win7 or Win 8 O/S (at least 30GB RAM)

NOTE: Ensure your close any anti-virus software and other existing program, otherwise, the software data may be destroyed or lost.

Install Lexia 3 Diagbox
1) Copy the Diagbox 7.02 ISO and three files in the CD to the computer, or download them in the link here:
https://mega.co.nz/#F!t1oSRCQa!BFnBi1gIFZ4cyd6MbZTsQg
The software is too large to upload. It will take you around 2-3 hours.

2) Install a virtual machine on your computer. Make sure your Win7/Win 8 system is able to mount Diagbox7.02 ISO image without other mounting software.

3) Install Diagbox-setup. exe driver.

4) Tick “Activation” mark (third option) to activate the software.

5) Manually enter the activation code: 1234567

6) The green button will prompts you to install Lexia 3 PP2000 software. Make sure your computer meets the enough RAM. Otherwise, it will fail to install. After installation complete, tick the green mark.

7) Enter and complete the information: 6 1's in Address; 8 1's in Post Code & Car-Phone

8) Select No option to close the program

Update Lexia 3 Diagbox
9) Open the Diagbox 7.02 setup exe on the computer. It will run self upgrade automatically. Close it after complete upgrade procedure. Copy a file marked red below from the file <C:\AWRoot\bin\fi called "APPDIAG.SYS">. Then paste and save it to the desktop.

10) Run the update file one by one and run the new Diagbox.exe setup. Wait for that to finish the update. Repeat the procedures until you get the Diagbox version to V7.30 by using the access code for these updates "scary01". Restart the computer after upgrade is complete.

11) Run the Diagbox exe. setup and connect the Lexia 3 diagnostic interface to the computer and vehicle’s OBD port.
12) Select vehicle manufacture Citroen or Peugeot

13) Select Vehicle model, for example Citroen>>C-Crosser

If the window prompts "Do you want to automatically configure..." note, select No option but do not select green mark (Yes) option.

Then start to enter the ETAC Customize setting.

Select Vehicle make: Citroen
Select vehicle model: C-Crosser
Validate VIN (Check mark)
Diagbox
Repair

Global Test runs

Built-in System interface (BSI)

ETACS_SUV? Screen (two options offered)

Configuration
Manual Configuration

Switch on Ignition' screen

Check mark
Vehicle Configuration
Programming By Default

If the system asks: “There are two ways to configure list of default parameters: Do you want to configure the default parameters automatically? “ Select NO.

Move to the next ETAC program to select corresponding options, like disable DRLs, disable TPMS, enable auto-lock with vehicle speed, re-calibrate speedometer with different size tires etc.

More information about product lexia 3 pls visit:http://www.uobdii.com/wholesale/lexia-3-citroen-peugeot-diagnostic-pp2000.html

Article form: http://lexia-3.blogspot.com/2016/03/lexia-3-pp2000-diagbox-customize.html

How to install Diagbox V7.57 for Lexia-3 PP2000 Citroen and Peugeot

The Diagbox for Lexia 3 V48 PP2000 V25 Citroen and Peugeot diagnostic has newly upgraded to latest V7.57. Here is the step-by-step Daigbox V7.57 installation instruction:




http://www.uobdii.com/wholesale/lexia-3-citroen-peugeot-diagnostic-pp2000.html
ⅠInstall DiagBox V7.57 setup1

1)Insert CD software into the computer
2)Open Diagbox V7.57 (E:) CD
3)Select and open setup1

4) After loading setup. Select system language

5) Accept SPTD setup license agreement.

6) Restart the computer

7) Select language again

8) Accept license agreement

9) Save file to a certain folder and click next

10) Select Alcohol 52% file on the desktop, select Add image from my computer Diagbox V7,57 and mount on Setup BDV0702

11) Setup is installing. Select language again.
Ⅱ Install DaigBox-setup

12) Open Diagbox.V07.02(F:) and open Diagbox-setup driver

13) Select language. Installing setup driver will generate three folders on the desktop, EmalDiag, WEBEX and Diagbox. Accept the windows security alert

14) Diagbox software is loading.

Ⅲ Activate Lexia 3 DiagBox software
15) The system will prompt ACTIVATION message, click manually activation (3rd option)

16) Check your customer code and correct it if it is not correct

17) Please wait until the software complete installation. Usually it will take about 12 minutes. The waiting time depends on your computer configuration

18) After complete install, click Yes to continue When come to the PARAMETER program, fill in the Dealership Information and Technician information , including Company name, Address, Post Code etc

19) Click No when the system asks for new update. Select Citroen or Peugeot band in BRAND SELECTION program and then select detail vehicle model to check vehicle information.

20) Close the activation program. Unlock windows security alert

Ⅳ Update DiagBox to V7.57

You can not directly update DiagBox to V7.57. You have first update to V7.44, than update V7.44 to V7.49, then update V7.49 from V7.57.

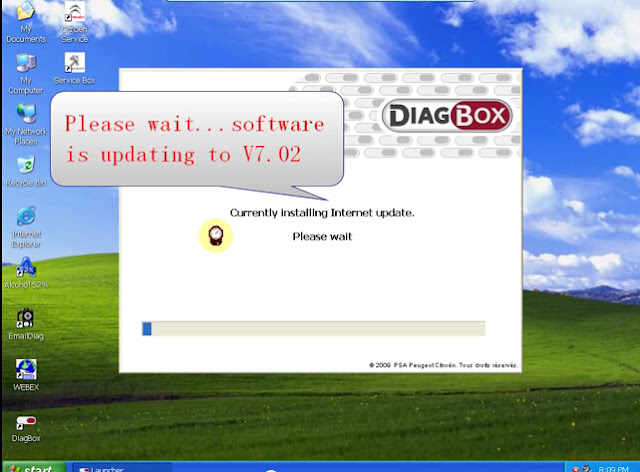

21) Open DiagBox shortcut on the desktop, the software is updating to V7.02

22) When the system asks for an update, click no. Check the vehicle information again. Close the program.

23) Open DiagBox V7.57(E:) CD software on My computer. Select setup3 update V7.02 to V7.57 file.

24) Select DiagBox Update V7.xx to V7.44, select language, accept windows prompts

25) Enter the setup password, scary01

26) After update complete, select no to restart the computer now but restart the computer later.
Back to setup3 folder, select Update V7.44 to V7.49, follow the operation of updating DiagBox V7.xx to V7.44.

27) Select DaigBox Update V7.49 t0 V7.57. Follow the same update operation as previous update.

28) After update Diagbox from V7.57, open DiagBox shortcut on the desktop

29) Here is the new DiagBox software program of V7.57

30) Please connect the device to the car, then use the short USB cable to connect with the computer, then it will prompt to install driver.

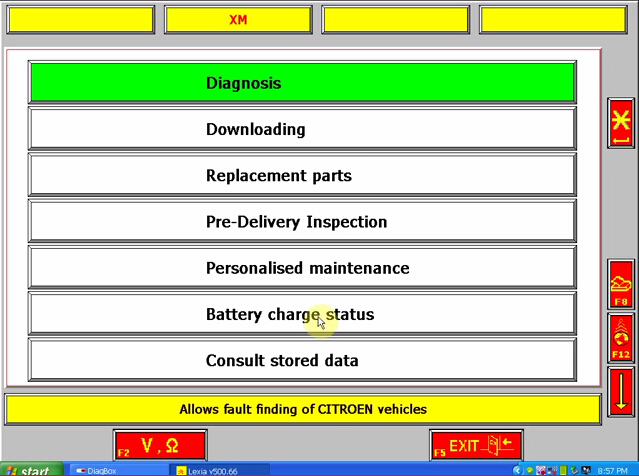

31) Select the application as LEXIA

32) Enter missing information

33) Come to the main diagnosis function, select the function you want to project.



Article form:http://lexia-3.blogspot.com/2016/03/how-to-install-diagbox-v757-for-lexia-3.html

How to program Peugeot new key with Lexia3 PP2000 diagnostic tool

Equipment:
Lexia3 PP2000 interface

NOTE:
PIN Code is required during key programming procedure. Record your vehicle PIN code first.

V156 Renault CAN Clip torrent Free Download:
http://blog.uobdii.com/v156-renault-can-clip-torrent-free-download/

Instruction:

1.Install and activate Lexia 3 PP2000 V25 diagnostic software
2.Select vehicle model 307 and wait until the well communication built
3.Check the entering vehicle information

4.Select the application as Peugeot Plant 2000 and confirm it

5.Select test by ECU
6.Select Built-in systems interface

7.The system is reading the ECU in progress, follow and accept the windows prompts.
8.Select Learning option under Carry out the tests menu display

9. Select Programming of keys

10. The system will display key programming procedure when activation process is complete. Confirm to continue.
11. Confirm Unlocking the E.C.U program
12. Manually enter the Confidential code (PIN Code)

13. The system is verifying the PIN code. If the code is correct, the built-in systems interface is ready for programming of keys.
14. Enter the key number to be learnt. The number of keys to be programmed cannot exceed 5.

15. Follow the screen prompt to switch off the ignition
16. Then switch ignition to ON within 15 s.

17. Key programmed, switch off the ignition and take out the key

18. Switch ignition ON again and insert the next key in the ignition. Repeat the key programming procedure to program another key. When complete programming, the system will display keys that are programmed.

19. Follow the screen instructions. Check the handbrake is on. For an automatic gearbox, check the gear level is in position “P”. For a manual gearbox, check that the gear level is in neutral
20. Follow the re-synchronies the HF remote controls procedure to operate until the “End of key programming procedure” notice displays. Exit the program.

 Article form:

How to program Peugeot new key with Lexia3 PP2000 diagnostic tool
